Civic - Overview

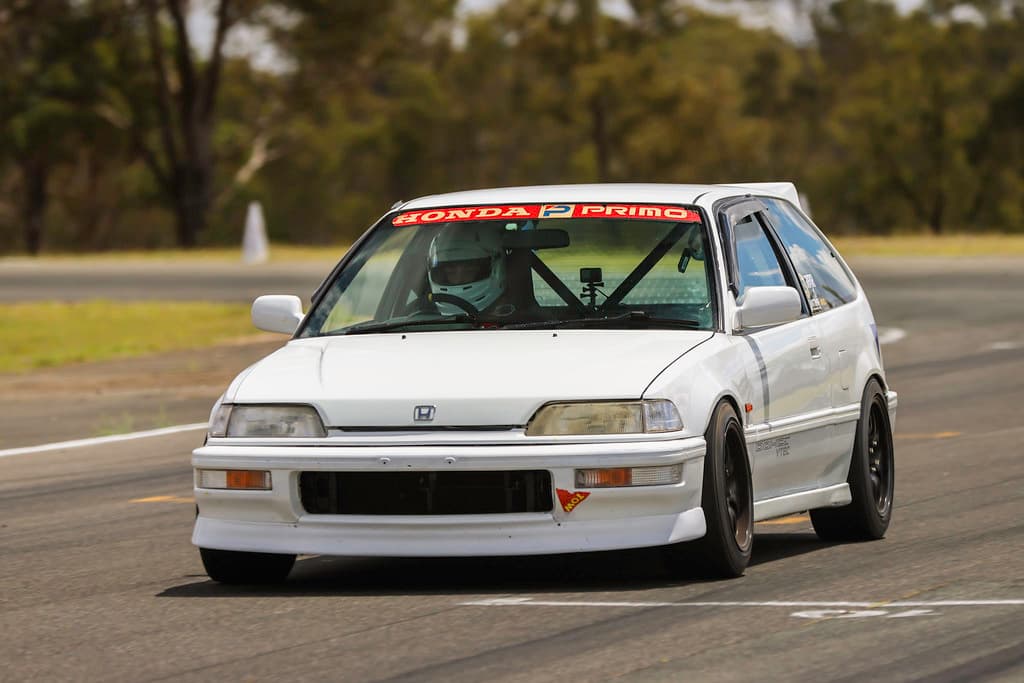

I purchased my 1989 Honda Civic ED6 in 2014 as a daily, with the intention of taking it to the track. After receiving a B18CR swap 2 years in, the car has since developed with quite a solid suspension package, sporting faster lap times as I get more time in the saddle. Towards the end of 2024, the Civic received a big gearbox upgrade to take it to the next step.
After years of watching GT racing, the itch has grown to start my door to door career in the car. The Civic has now received a full weld in cage, and has been prepped for racing. It will be competing in our local MRA Super TT competition, I'll document all of the racing through here as the build thread continues!
Technical Specifications
Engine
- Type: Honda B18CR
- Displacement: 1.8L (1,797 cc)
- Power Output: 132.5kw
- Torque: --- Nm
- Redline: 8,720 RPM
Transmission
- Type: Type R - S80 LSD
- Clutch: Standard Exedy Clutch
- Differential: Cusco LSD Type RS 1.5Way
- Gear Ratios: 1/2 - OEM | 3/4/5 - GearX Short ratio | FD - OEM
- Shifter: FastLine Shifter - Honed Gear Linkage - HR Detent Springs
Suspension
- Suspension System: Double Wishbone
- Coilovers: BC ER ~ F: 20kg | R: 14kg
- Camber Arms: F: Skunk2 | R: Honed Developments
- Sway Bars: F: OEM | R: 19
- Geometry: Full Honed Geometry correction kit
- Castor: Innovative Traction Bar
Brakes
- Calipers: F: DC2R/CRV 282mm | R: Stock CRX
- Rotors: F: DBA T3 282mm | R: Stock CRX Blanks
- Brake Pads: F: Intima RR | R: Intima SS
- Brake Fluid: Motul RBF 600
- Brake Lines: HEL Braided Lines
- Brake Assist: Honed Brake Booster Delete
Interior
- Seat: Racetech - RT4009HR
- Harness: RPM 6pt 3inch
- Steering Wheel: Sabelt SW-733 Flat Bottom
- Data Aquition: WillTech - Race Dash
Exterior
- Front: EF9 Front Conversion + J's Racing lip
- Back: Standard
- Sides: EK Side Skirts
- Spoiler: Devil Wing (rep)
Race Stats
| Track | Time | Date |
|---|---|---|
| SMSP - GP | 1:58.234 | 2023-06-10 |
| SMSP - North Circuit | 1.15.79 | 15-12-2021 |
| SMSP - Brabham | 2.14.98 | 14-11-2024 |
| Morgan Park | 1.28.05 | 22-10-2024 |
| Winton Raceway | 1.37.45 | 14-09-2024 |
| Wakefield | 1.09.12 | 23-04-2021 |
| Pheasant Wood Circuit | 1.02.24 | 19-05-2024 |
| Track | Finish Positions | Date |
|---|---|---|
| SMSP - GP | ---------- | ---------- |
| SMSP - North Circuit | ---------- | ---------- |
| SMSP - Brabham | ---------- | ---------- |
| Morgan Park | ---------- | ---------- |
| Winton Raceway | ---------- | ---------- |
| Wakefield | ---------- | ---------- |
| Pheasant Wood Circuit | ---------- | ---------- |
